HP Designjet 9000S Printhead (QUANTUMTRONIC) (Computers - Other Computers Ads)

Item ID 14831159 in Category: Computers - Other Computers Ads

HP Designjet 9000S Printhead (QUANTUMTRONIC)


Buy HP Designjet 9000S Printhead is 100% safe,Because purchase products at Quantum Tronic provide a 100% money back guarantee.
Location Quantum Tronic : Jl. Arief Rahman Hakim no.59 Medan.To purchase online visit the website : www quantumtronic com

Price : USD 319 / Pcs
Min Order : 1 - 5 Pcs
Lead Time :3-7 Days
Port : CIF / Kualanamu International Airport
Terms : Bank Transfer, Wise, Western union, Moneygram & WorldRemit
Shipment : FedEx, DHL, UPS
Product : Ori and Ready in stock

Hp designjet 9000s printhead

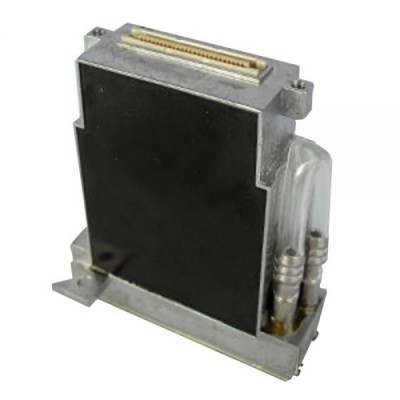

This is the Konica Minolta KM512 MN print head, it is a robust, shear mode, piezo on-demand print head that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM512 MN print head has 512 nozzles with a droplet size of 14 pico litre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks. This print head is also known as the Konica Minolta KM512 MNX.

To be used with:
Agfa: :Anapurna M, :Anapurna M4f, :Anapurna Mv, :Anapurna Mw
Anhui LiYu: Anhui Liyu Apollo PTP-KL, Maxima PZ-KM, Maxima PZ3204-KM, Maxima PZ3206-KM, Maxima PZ3208-KM
DGI: SaturnJet ST-1806 / OrionJet OR-1806
JHF Vista: Vista3306 / H8 3304FN / H8 3306FNS
HP DesignJet: designjet 9000s, DesignJet 10000s
MYJET: Myjet LB3208KM42 / LE3208KM42 / WB3208KM42 / WC3208KM14
Seiko Color Painter: Seiko ColorPainter 64S / ColorPainter 100S
Other Brand: Allwin C8, Flora HJ 3200Turbo, Rodin K4320-A / K4320-B / K6164-B / K8320-B / k6320-A, Sun Neo Da Vinci, Skynet PC-series / HS-series, DYSS Apollo PTP3204-KM, Taimes T5 / T7 , Dilli Neo Titan UVT-1606S / Neo Titan UVT-1606W, OCE CS 6060 / CS 6100
Remarks: Original



Specifications:

Product Name KM512L
KM512M

KM512S

Drive Mode Piezo Drop-On-Demand
Nozzle Resolution
180dpi×2 rows = 360dpi

Nozzle Number 256 nozzles×2 rows = 512
Nozzle Spacing 70.5μm =(141um 2 rows)
Drop Volume 42pl
14pl

4pl

Firing Frequency 7.6kHz
12.8kHz

23.0kHz

Print Width
1.4" (36.1mm)

Dimensions
2.6"*1.6"*2.8" (67*40*72mm)(W*D*H)

solvent ink OK OK OK
uv ink OK OK OK OK
Oil Ink OK OK OK OK
Max. Drops in Greyscale - 3 drops 7 drops
With Heater (H) Available Available Available
Without Heater (N)) Available
Available

N.A.



Note:
The KM512 MN 14PL is not suitable for the varnish or white ink on the Agfa :Anapurna Mv and :Anapurna Mw printers. Please order KM512LN / 42PL (PRH-KON-005) if you need print heads for varnish (Mv) of white ink (Mw).
