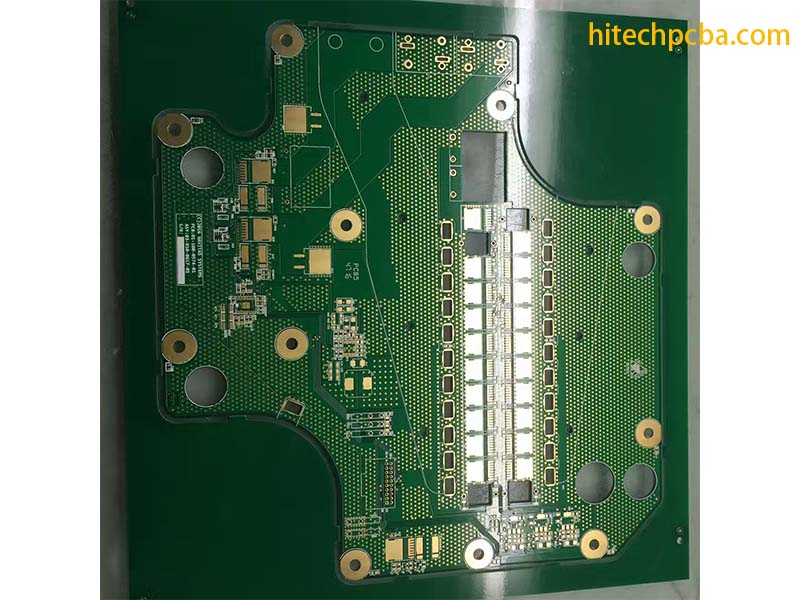

Multilayer PCB Materials: Key to Performance and Reliability | |
In multilayer PCB manufacturing, the choice of materials directly affects electrical performance, thermal stability, and product reliability. Each layer in a multilayer PCB stack-up plays a specific role, and understanding the materials used is essential for optimal design and production. Core and Prepreg The foundation of any multilayer PCB is the combination of core and prepreg. Core is a rigid double-sided laminate made of fiberglass-reinforced resin, usually FR-4, with copper foil on both sides. It provides mechanical strength and supports internal circuitry. Prepreg is a fiberglass material pre-impregnated with partially cured resin. It is placed between layers during lamination and bonds them together when heat and pressure are applied. Prepreg also serves as insulation between conductive layers. Common prepreg and core materials include standard FR-4, high-Tg epoxy, polyimide, and halogen-free options. Copper Foil Copper is the conductive material that forms the signal layers, power planes, and ground planes in a PCB. It comes in different thicknesses depending on the current requirements. Typical copper thicknesses include 17 microns (0.5 oz), 35 microns (1 oz), and 70 microns (2 oz) per square foot. There are two main types of copper foil: electrodeposited (ED) copper, which is more economical, and rolled annealed (RA) copper, which is more flexible and used in applications with fine-pitch routing or bending requirements. Dielectric Materials Dielectric materials provide electrical insulation between conductive layers. They also influence signal speed, impedance control, and overall board performance. FR-4 is the most commonly used dielectric in general-purpose PCBs. It is cost-effective and provides adequate thermal resistance for standard applications. For high-temperature or high-frequency applications, designers often use high-Tg FR-4, polyimide, or PTFE-based materials like Rogers. These advanced materials offer better thermal performance, lower signal loss, and improved stability in harsh environments. Halogen-free materials are also increasingly popular in eco-friendly and flame-retardant applications. Solder Mask and Surface Finishes The solder mask is the colored layer that protects copper traces from oxidation and prevents solder bridging during assembly. Green is the most common color, but others like red, blue, black, and white are also available. Surface finishes are applied to exposed copper areas such as pads to ensure good solderability and prevent oxidation. Common finishes include HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), and OSP (Organic Solderability Preservative). Material Selection Tips When selecting materials for a multilayer PCB, engineers consider several factors: Electrical performance, including signal integrity and impedance control. Thermal resistance for environments with high operating temperatures. Mechanical strength and layer count, especially in thicker or rigid-flex designs. Cost, availability, and compatibility with manufacturing processes. Choosing the right material combination helps ensure long-term reliability and performance of the final product. Final Thoughts Multilayer PCBs are the backbone of modern electronic systems, and material selection is at the core of their success. By understanding the properties and applications of different PCB materials, designers and engineers can make better decisions and achieve more efficient, durable, and high-performance designs.  | |
